FPL Haven Deadbolt - Single Cylinder
Sale
FPL Haven Deadbolt - Single Cylinder
Not all finish and hardware combinations are shown. Images may represent style only.

FPL Haven Deadbolt - Single Cylinder

$41.80

$21.50

PRODUCT DESCRIPTION

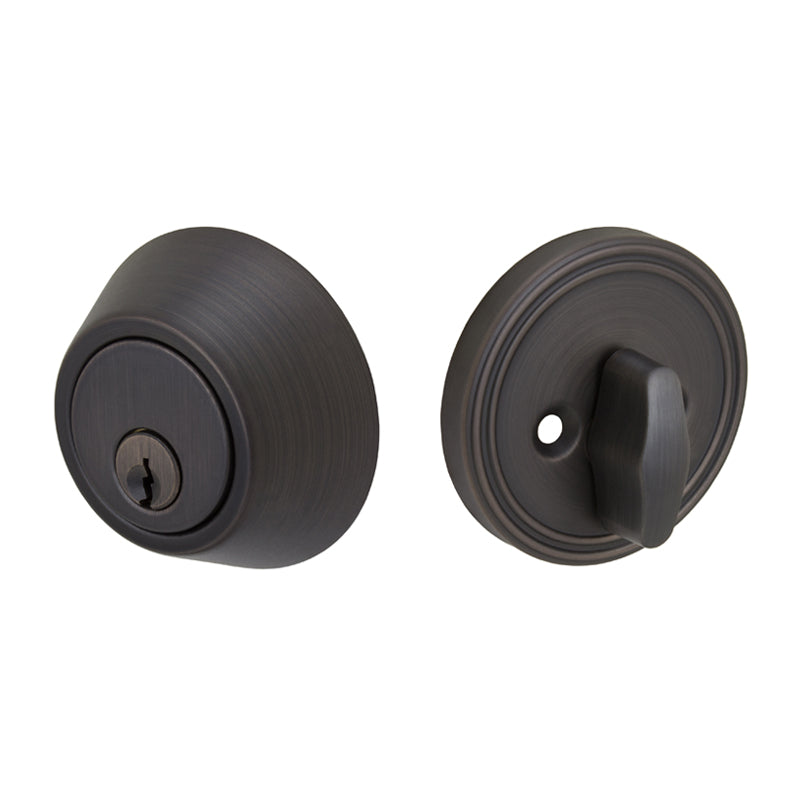

FPL Haven Single Cylinder Deadbolt

About this product:

FPL's Haven single cylinder deadbolt is made of zinc and is available in three popular finishes. This deadbolt provides a clean, classic look and pairs well with the FPL Hampton Lever Set.

Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Zinc construction for attractive design and pricing
  • Easy installation designed for standard 2-1/8" cross bore door prep
  • Complete set includes all necessary mounting hardware and accessories
  • Available finishes: Polished Brass (US3), Oil Rubbed Bronze (US10B), Satin Nickel (US15)
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL Haven Single Cylinder Deadbolt

About this product:

Single Cylinder Deadbolt

The Haven single cylinder deadbolt locks/unlocks with a key on the outside or the thumbturn on the inside. The Haven deadbolt is also available in the double cylinder (locks/unlocks with a key on the outside and inside of the door) function. This item is listed separately.

 Product Specs:
  • Haven Specification Sheet
  • Single Cylinder Deadbolt Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Adjustable backset: 2-3/8" (60mm) or 2-3/4" (70mm)
  • Door thickness: 1-3/8" to 1-3/4" (Screws included)
  • Exterior projection: 1"
  • Interior projection: 29/32"
  • Interior thickness: 19/64"
  • Latch: Mortised tubular latch
  • Latch faceplate and strike: Square and radius corner
  • Keyway: Schlage C
  • Keys: Each set includes 2 keys



INSTALLATION

FPL Haven Single Cylinder Deadbolt

About this product:

The Haven single cylinder deadbolt is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

 Product Installation:



ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" menu tab above for more information.
