FPL Catalina Lock Set - Passage

$304.25

PRODUCT DESCRIPTION

FPL Catalina Lock Set - Passage

About this product:

FPL's Catalina Lock Set is made from solid brass and available in an array of fine finishes.

Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Solid brass construction for durability and quality

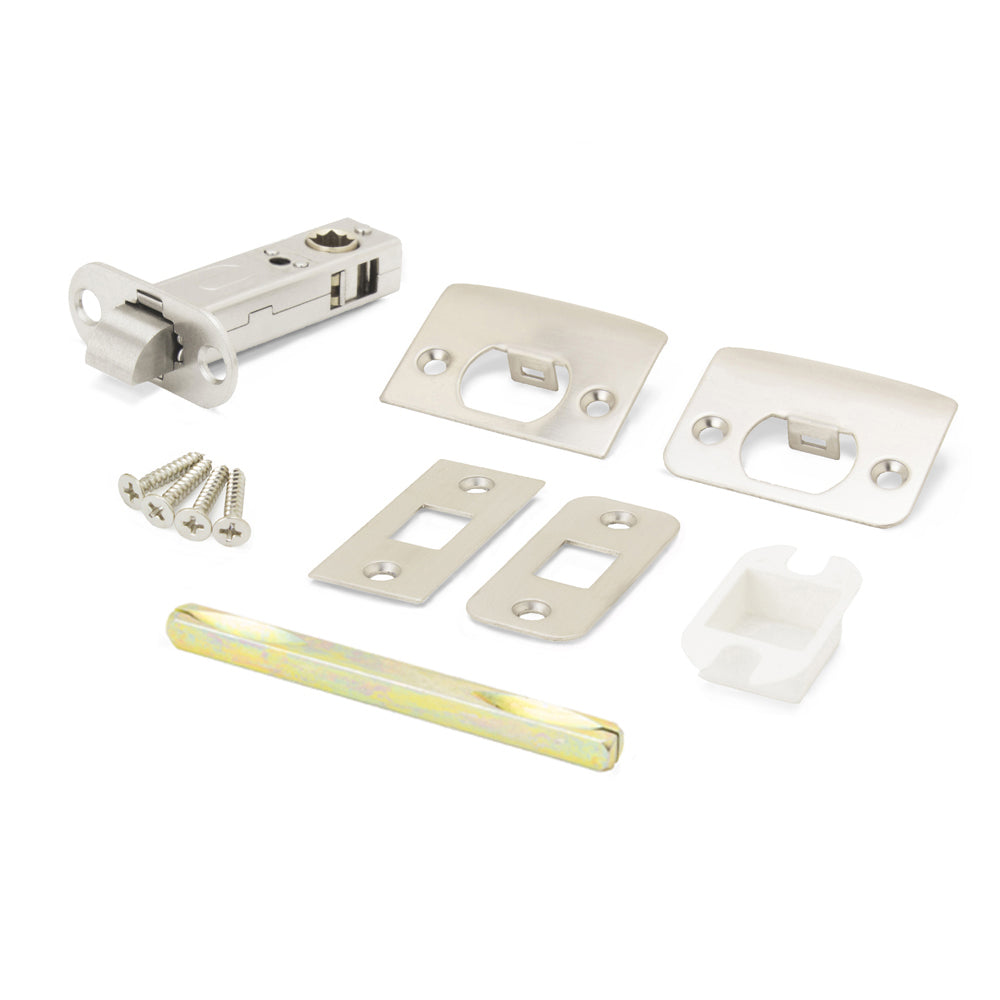

  • Complete set includes all necessary mounting hardware and accessories
  • 11/16" passage latch cross bore and 1" edge bore hole
  • Features spring assist for optimal operational strength and lever return
  • Available finishes: Polished Brass (US3), Antique Brass (US5), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Polished Chrome (US26), Satin Chrome (US26D), Black (BPC), White (WPC), Lifetime Polished Brass (PVD), Rustic Distressed Brass (DB), Rustic Distressed Dark Bronze (DDB), Rustic Distressed Light Bronze (DLB), Rustic Distressed Nickel (DN)
  • Available lever styles: Athens, Bellagio, Catalina, Elena, Imperial, Luxor, Normandy, Piedmont, Riviera
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL Catalina Lock Set - Passage

About this product:

The passage Catalina set features a passage latch but contains no locking function. The passage latch is retracted by the motion of a lever. The Catalina style is also available in the entry (locks/unlocks with a deadbolt), privacy (locks/unlocks with a privacy pin on the interior and can be unlocked from the exterior with the emergency release) and dummy (contains no latch or locking function) functions. These items are listed separately.

 Product Specs:
  • Catalina Specification Sheet
  • Cross bore: 11/16" for latch
  • Edge bore: 1"
  • Door thickness: 1-3/4" to 2-1/4"
  • Plate width: 1-3/4" (will not cover standard 2-1/8" cross bore hole)
  • Plate length: 9-1/8"
  • Plate thickness: 23/64"
  • Steel spindle



INSTALLATION

FPL Catalina Lock Set - Passage

About this product:

The FPL passage Catalina lock set is designed for a 11/16" cross bore hole for the latch, and a 1" edge bore.

 Product Installation:
