Baldwin Square Lever Set - Privacy

$153.69

PRODUCT DESCRIPTION

Baldwin Square Lever Set - Privacy

About this product:

From the Baldwin Reserve Contemporary collection, the Square lever set is made from solid brass and available in an array of popular finishes. Baldwin offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Baldwin items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

 Product Features:
  • Baldwin Square product page
  • Solid brass construction for durability and quality
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 2-1/8" cross bore door prep and 1" edge bore for latch
  • Features easy-to-install spring assist for optimal operational strength
  • All privacy function knobs and levers are available with push-button locking: easily unlock the door by turning the knob or lever; manual unlocking is not required
  • Exposed mounting screws on interior rosette
  • Available finishes: Lifetime Satin Brass (044), Lifetime Polished Nickel (055), Venetian Bronze (112), Satin Nickel (150), Satin Black (190), Polished Chrome (260)
  • Baldwin offers a Limited Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Baldwin Square Lever Set - Privacy

About this product:

Privacy Lever Graphic

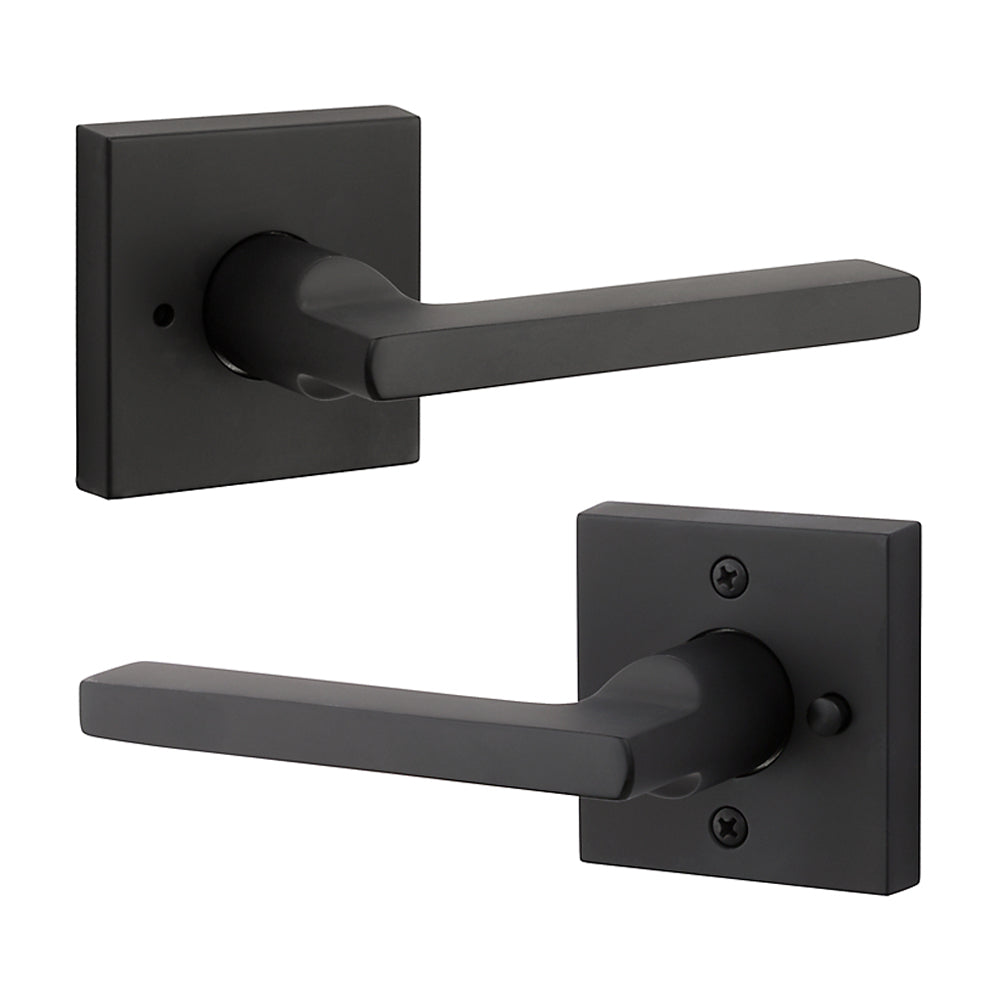

The Square privacy lever set features push-button locking: easily unlock the door by turning the knob or lever; manual unlocking is not required. The Square lever is also available in the entry (locks/unlocks with a key on the outside and a turnpiece on the inside), passage (contains a passage latch but no locking function) dummy (contains no latch or locking function) and half dummy (one sided with no latch or locking function) functions. These items are listed separately.

 Product Specs:
  • Baldwin Lever/Rosette Specification Sheet - see lever "SQU" and rosette "CRR" or "CSR"
  • Privacy Lever Set Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Door Thickness: 1-3/8" to 2-1/2"
  • Backset: Adjustable to 2-3/8" (60mm) or 2-3/4" (70mm)
  • Latch: 6 Way adjustable (6L), includes square and radius faceplates. 20-minute certified UL option available
  • Strike: Dual strike (DS) includes both square and radius corner. Extended Lip strike shipped with all thick door locks (ES) (for doors 2" to 2-1/2" thick)
  • 1/2" latch bolt
  • Tested to exceed ANSI/BHMA Grade 2 security



INSTALLATION

Baldwin Square Lever Set - Privacy

About this product:

The Square lever set is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

 Product Installation:



ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Baldwin also offers a high degree of customization, including split finish and split style options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.

 Order Help:



INSPIRATION

In need of some inspiration? Take a look at these links:

 Inspiration:
