Not all finish and hardware combinations are shown. Images may represent style only.

FPL Royal Lock Set - Entry

$149.00

PRODUCT DESCRIPTION

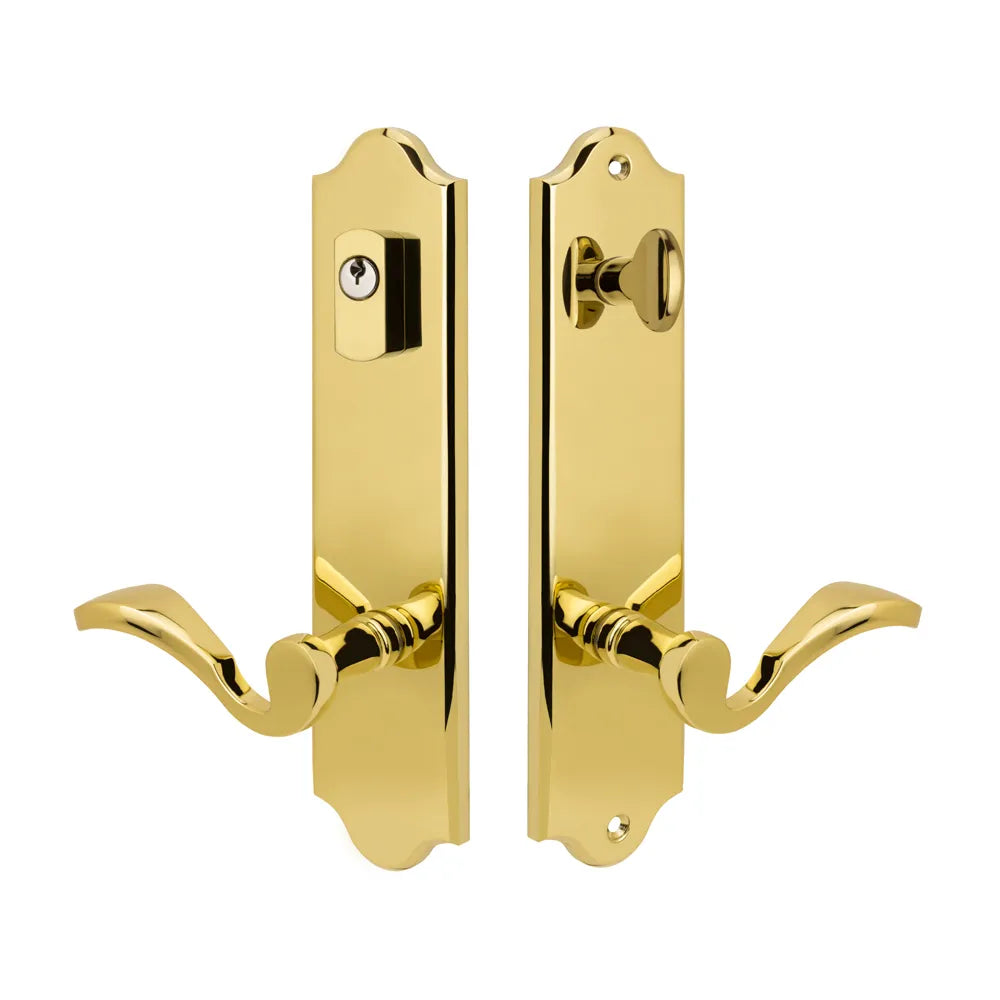

FPL Entry Royal Lock Set

About this product:

FPL's entry Royal lock set is available in an array of popular finishes. Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Zinc Die-Cast construction for attractive design and pricing

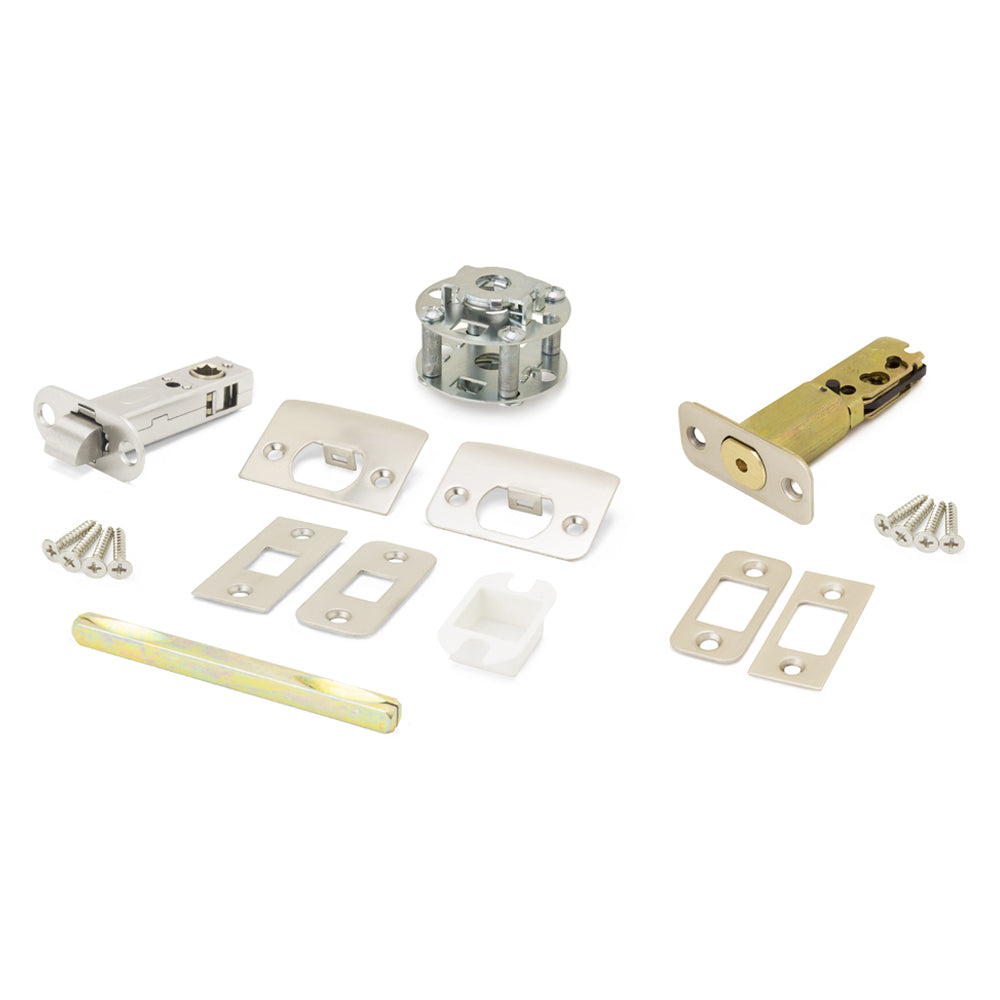

  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 5-1/2" center-to-center (c-t-c) bore hole spacing
  • Standard 2-1/8" cross bore and 1" edge bore for passage and deadbolt latch
  • Accommodates 1-3/4" door thickness
  • Features easy-to-install spring assist for optimal operational strength
  • Available finishes: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Polished Chrome (US26), Satin Chrome (US26D), White (WPC), Lifetime Polished Brass (PVD)
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL Entry Royal Lock Set

About this product:

Royal Dimensions

The entry Royal set features a key cylinder, key cylinder housing, thumbturn, deadbolt and passage latch. The deadbolt is retracted by a key on the outside or the thumbturn on the inside. The passage latch is retracted by the motion of a lever. The Royal style is also available in the privacy (locks/unlocks with a privacy pin on the interior and can be unlocked from the exterior with the emergency release), passage (contains passage latch with no locking function) and dummy (contains no latch or locking function) functions. These items are listed separately.

 Product Specs:
  • Royal Specification Sheet
  • Bore hole spacing: 5-1/2" center-to-center (c-t-c)
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Door Thickness: 1-3/4"
  • Plate width: 2-7/16"
  • Plate length: 11-1/16"
  • Projection from door face: 2-1/2"
  • Keyway: Schlage C
  • Keys: Each set includes 2 keys



INSTALLATION

FPL Entry Royal Lock Set

About this product:

The FPL entry Royal lock set is designed for easy installation using standard 2-1/8" cross bore holes and 1" edge bore door prep. This wide plate lever set requires a deadbolt to latch spacing of 5-1/2" center-to-center (c-t-c).

 Product Installation:



ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" menu tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.
