Baldwin Round Knob Set - Passage

Baldwin

$124.53

PRODUCT DESCRIPTION

Baldwin Round Knob Set - Passage

About this product:

From the Baldwin Reserve Traditional collection, the Round knob set is made from solid brass and available in an array of popular finishes. Baldwin offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Baldwin items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

Product Features:

Baldwin Round product page
Solid brass construction for durability and quality
Complete set includes all necessary mounting hardware and accessories
Easy installation designed for standard 2-1/8" cross bore door prep and 1" edge bore for latch
Features easy-to-install spring assist for optimal operational strength
Exposed mounting screws on interior rosette
Available finishes: Lifetime Polished Brass (003), Lifetime Satin Brass (044), Lifetime Polished Nickel (055), Venetian Bronze (112), Satin Nickel (150), Matte Antique Nickel (152), Satin Black (190), Polished Chrome (260)
Baldwin offers a Limited Warranty to the original user
California Residents Proposition 65 Warning

PRODUCT SPECS

Baldwin Round Knob Set - Passage

About this product:

Passage Lever Set Graphic

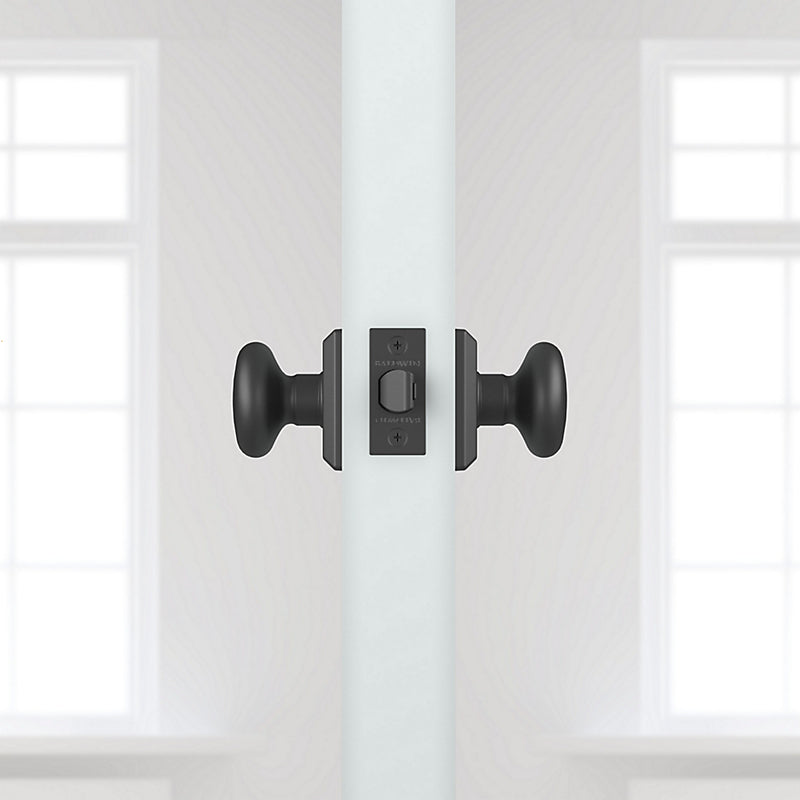

The Round passage knob set features a passage latch but contains no locking function. The passage latch is retracted by the motion of a lever. The Round knob is also available in the entry (locks/unlocks with a key on the outside and a push-button on the inside), privacy (locks/unlocks with a push-button on the interior and can be unlocked from the exterior with the emergency release), dummy (contains no latch or locking function) and half dummy (one sided with no latch or locking function) functions. These items are listed separately.

Product Specs:

Baldwin Knob/Rosette Specification Sheet - see knob "ROU" and rosette "TRR", "TAR" or "TSR"
Passage Lever/Knob Set Specification Sheet
Cross bore: 2-1/8"
Edge bore: 1"
Door Thickness: 1-3/8" to 2-1/2"
Backset: Adjustable to 2-3/8" (60mm) or 2-3/4" (70mm)
Latch: 6 Way adjustable (6L), includes square and radius faceplates. 20-minute certified UL option available
Strike: Dual strike (DS) includes both square and radius corner. Extended Lip strike shipped with all thick door locks (ES) (for doors 2" to 2-1/2" thick)
1/2" latch bolt
Tested to exceed ANSI/BHMA Grade 2 security
Meets ADA requirements

INSTALLATION

Baldwin Round Knob Set - Passage

About this product:

The Round knob set is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

Product Installation:

ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Baldwin also offers a high degree of customization, including split finish and split style options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.

Order Help:

Door Hardware 101
Backset Guide
