Emtek Arts & Crafts Deadbolt - Patio

Emtek

$50.15

PRODUCT DESCRIPTION

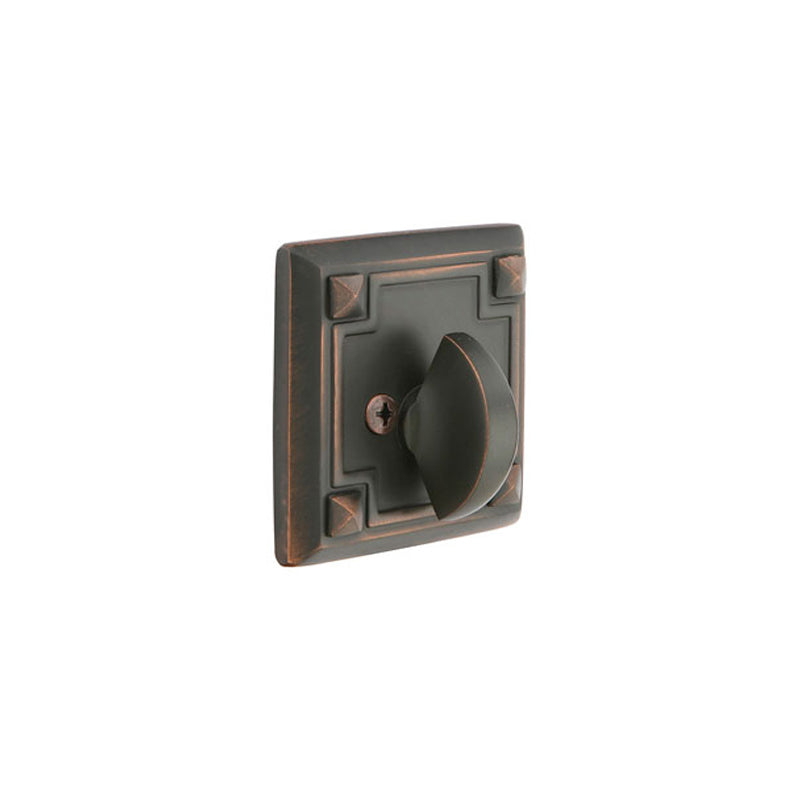

Emtek Arts & Crafts Patio Deadbolt

About this product:

From the Emtek American Heritage collection, the Arts & Crafts patio deadbolt is made from solid brass and available in an array of popular finishes. Emtek offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finishes and split styles are also available. Give us a call to design your custom set.

All Emtek items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

Product Features:

Emtek Arts & Crafts Deadbolt product page
Solid brass cylinder, thumbturn, and rosette for durability and quality
Hardened steel bolt for additional strength and security
Heavy gauge steel understrike and brass trim strike shipped with every deadbolt
Complete set includes all necessary mounting hardware and accessories
Easy installation designed for 1-3/4" cross bore and 1" edge bore door prep
Available finishes: Oil Rubbed Bronze (US10B), Satin Nickel (US15), Flat Black (US19), Unlaquered Brass (US3NL)
Emtek offers a Lifetime Limited Warranty to the original user
California Residents Proposition 65 Warning

PRODUCT SPECS

Emtek Arts & Crafts Patio Deadbolt

About this product:

Patio Deadbolt Graphic

The Arts & Crafts patio (single-sided) deadbolt features a hardened steel bolt for additional strength and security. The deadbolt is retracted by a thumbturn on the inside. The Arts & Crafts style is also available in the single cylinder (locks/unlocks with a key on the outside and a thumbturn on the inside) and double cylinder (locks/unlocks with a key on the outside and inside of the door) functions. These items are listed separately.

Product Specs:

Arts & Crafts Specification Sheet
Patio Deadbolt Specification Sheet
Cross bore: 1-3/4"
Edge bore: 1"
Door Thickness: 1-5/8" to 3-3/8"
Interior projection: 1-1/4"
Interior thickness: 5/16"
Backset: 2-3/8" (60mm) or 2-3/4" (70mm) available
Latch: Mortised tubular latch with square or radius corner faceplate available.
Strike plate: Standard square strike with steel understrike included. Heavy duty strike options available.

INSTALLATION

Emtek Arts & Crafts Patio Deadbolt

About this product:

The Arts & Crafts patio deadbolt is designed for easy installation using 1-3/4" cross bore and 1" edge bore door prep.

Product Installation:

Installation Instructions
When you are preparing for the 1-3/4" cross bore, bore from the inside 1-1/2" deep, do not bore all the way through the door.
