Emtek Cody Lever Set - Passage

Emtek

$158.40

PRODUCT DESCRIPTION

Emtek Cody Lever Set - Passage

About this product:

From the Emtek Rustic Living collection, the Cody lever set is made from solid bronze and available in three beautiful finishes. Emtek offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Emtek items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

Product Features:

Emtek Cody product page
Solid bronze construction for durability and quality
Complete set includes all necessary mounting hardware and accessories
Easy installation designed for standard 2-1/8" cross bore door prep and 1" edge bore for latch
Features spring assist for optimal operational strength
Exposed mounting screws on interior rosette
Available finishes: Flat Black (FB), Medium Bronze (MB), Tumbled White Bronze (TWB)
Emtek offers a Lifetime Limited Warranty to the original user
California Residents Proposition 65 Warning

PRODUCT SPECS

Emtek Cody Lever Set - Passage

About this product:

Passage Lever Set Graphic

The Cody passage lever set features a passage latch but contains no locking function. The Cody lever is also available in the privacy (locks/unlocks with a push-button on the interior and can be unlocked from the exterior with the emergency release), dummy (contains no latch or locking function) and half dummy (one sided with no latch or locking function) functions. These items are listed separately.

Product Specs:

Cody Specification Sheet
Rosette Specification Sheet
Passage Lever Set Specification Sheet
Dustbox Specification Sheet
Cross bore: 2-1/8"
Edge bore: 1"
Door Thickness: 1-3/8" to 3"
Backset: 2-3/8" (60mm) or 2-3/4" (70mm) available
Latch: Mortised tubular latch is standard, 28° rotation latch is also available as an upgrade
Latch faceplate and strike: Square corner or radius corner available
Concealed Fastener (CF) mechanism is an available upgrade

INSTALLATION

Emtek Cody Lever Set - Passage

About this product:

The Cody lever set is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

Product Installation:

LATCH & MOUNT STYLE

Standard Latch

Exposed screws on interior rosette

Standard Rotation latch

28° Rotation Latch Upgrade

Exposed screws on interior rosette

Requires less rotation than standard latch

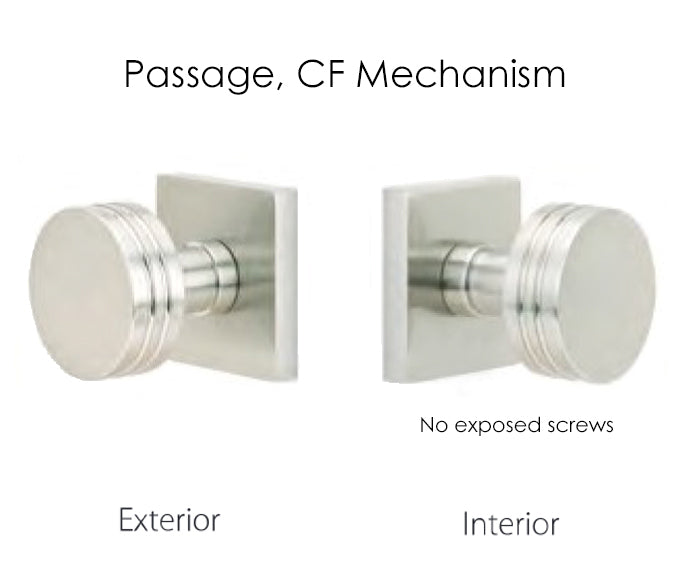

CF Mechanism Upgrade

Concealed screws on interior rosette

Handing not required, except for Knob by Lever and split finish products

Supplied with a 28° Rotation latch and dust box

CF Mechanism Installation Instructions

CF Mechanism Information Page

ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Emtek also offers a high degree of customization, including split finish and split style options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.

Order Help:
