Emtek Regular Deadbolt - Double Cylinder

Emtek

$63.90

PRODUCT DESCRIPTION

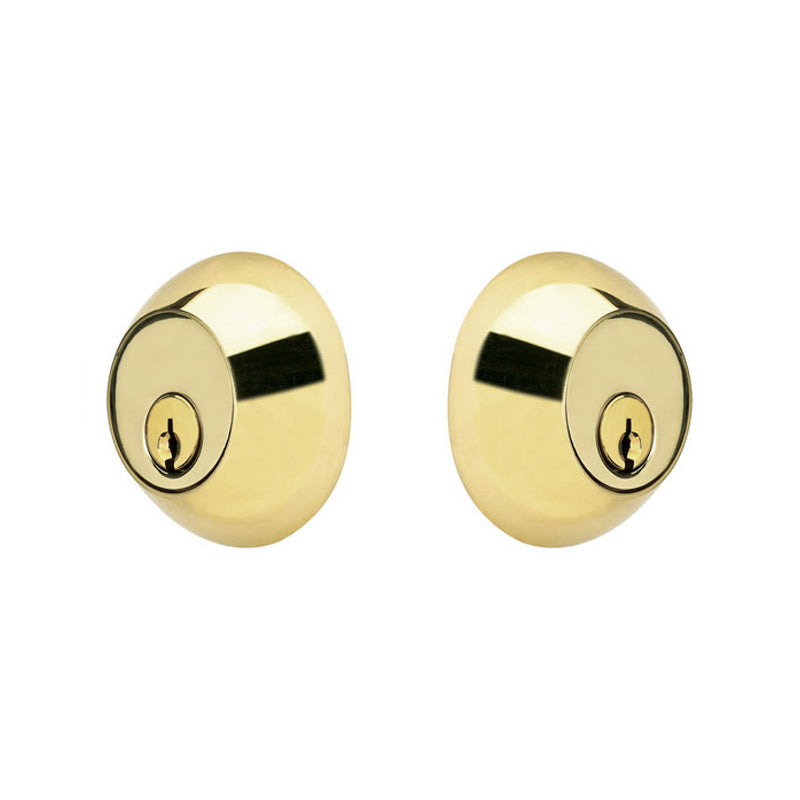

Emtek Regular Double Cylinder Deadbolt

About this product:

From the Emtek American Heritage collection, the Regular double cylinder deadbolt is made from solid brass and available in an array of popular finishes. Emtek offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finishes and split styles are also available. Give us a call to design your custom set.

All Emtek items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

Product Features:

Emtek Regular Deadbolt product page
Solid brass cylinder, housing, collar, thumbturn, and rosette for durability and quality
Hardened steel bolt for additional strength and security
Heavy gauge steel understrike and brass trim strike shipped with every deadbolt
Complete set includes all necessary mounting hardware and accessories
Easy installation designed for standard 2-1/8" cross bore and 1" edge bore door prep
Available finishes: Polished Brass (US3), Satin Brass (US4), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Unlaquered Brass (US3NL)
Emtek offers a Lifetime Limited Warranty to the original user
California Residents Proposition 65 Warning

PRODUCT SPECS

Emtek Regular Double Cylinder Deadbolt

About this product:

Double Cylinder Deadbolt Graphic

The Regular double cylinder deadbolt features a hardened steel bolt for additional strength and security. The deadbolt is retracted by both a key on the outside and on the inside. The Regular style is also available in the single cylinder (locks/unlocks with a key on the outside and a thumbturn on the inside) and patio (single-sided) (locks/unlocks with a thumbturn on the inside only) functions. These items are listed separately.

Product Specs:

Regular Specification Sheet
Double Cylinder Deadbolt Specification Sheet
Cross bore: 2-1/8"
Edge bore: 1"
Door Thickness: 1-3/8" to 2-1/2"
Projection: 13/16"
Backset: 2-3/8" (60mm) or 2-3/4" (70mm) available
Latch: Mortised tubular latch with square or radius corner faceplate available.
Strike plate: Standard square strike with steel understrike included. Heavy duty strike options available.
Keyway: Schlage C or Weiser WR5 available
Keys: Each set includes 2 keys

INSTALLATION

Emtek Regular Double Cylinder Deadbolt

About this product:

The Regular double cylinder deadbolt is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

Product Installation:

Installation Instructions

ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Emtek also offers a high degree of customization, including split finish and split style options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.

Order Help:

Door Hardware 101
Backset Guide
