Emtek Regular Deadbolt - Patio
Emtek Regular Deadbolt - Patio

Emtek Regular Deadbolt - Patio

$57.62

PRODUCT DESCRIPTION

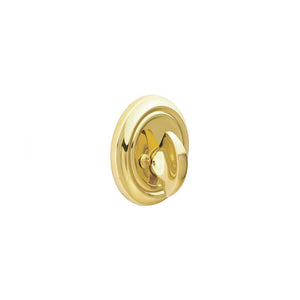

Emtek Regular Patio Deadbolt

About this product:

From the Emtek American Heritage collection, the Regular patio deadbolt is made from solid brass and available in an array of popular finishes. Emtek offers a high degree of customization, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Split finishes and split styles are also available. Give us a call to design your custom set.

All Emtek items are made to order and will be ready to ship in 7-10 business days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

 Product Features:
  • Emtek Regular Deadbolt product page
  • Solid brass cylinder, thumbturn, and rosette for durability and quality
  • Hardened steel bolt for additional strength and security
  • Heavy gauge steel understrike and brass trim strike shipped with every deadbolt
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for 1-3/4" cross bore and 1" edge bore door prep
  • Exposed mounting screws on interior rosette
  • Available finishes: Polished Brass (US3), Satin Brass (US4), French Antique (US7), Oil Rubbed Bronze (US10B), Polished Nickel (US14), Satin Nickel (US15), Pewter (US15A), Flat Black (US19), Polished Chrome (US26), Unlaquered Brass (US3NL)
  • Emtek offers a Lifetime Limited Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Emtek Regular Patio Deadbolt

About this product:

Patio Deadbolt Graphic

The Regular patio (single-sided) deadbolt features a hardened steel bolt for additional strength and security. The deadbolt is retracted by a thumbturn on the inside. The Regular style is also available in the single cylinder (locks/unlocks with a key on the outside and a thumbturn on the inside) and double cylinder (locks/unlocks with a key on the outside and inside of the door) functions. These items are listed separately.


 Product Specs:
  • Regular Specification Sheet
  • Patio Deadbolt Specification Sheet
  • Cross bore: 1-3/4"
  • Edge bore: 1"
  • Door Thickness: 1-5/8" to 3-3/8"
  • Interior projection: 1-1/4"
  • Interior thickness: 5/16"
  • Backset: 2-3/8" (60mm) or 2-3/4" (70mm) available
  • Latch: Mortised tubular latch with square or radius corner faceplate available.
  • Strike plate: Standard square strike with steel understrike included. Heavy duty strike options available.


INSTALLATION

Emtek Regular Patio Deadbolt

About this product:

The Regular patio deadbolt is designed for easy installation using 1-3/4" cross bore and 1" edge bore door prep.

 Product Installation:
  • Installation Instructions
  • When you are preparing for the 1-3/4" cross bore, bore from the inside 1-1/2" deep, do not bore all the way through the door.
