FPL Lanai Sliding Door Handle - Keyed

FPL Lanai Sliding Door Handle - Keyed

FPL Door Locks & Hardware

  • $37.75


PRODUCT DESCRIPTION

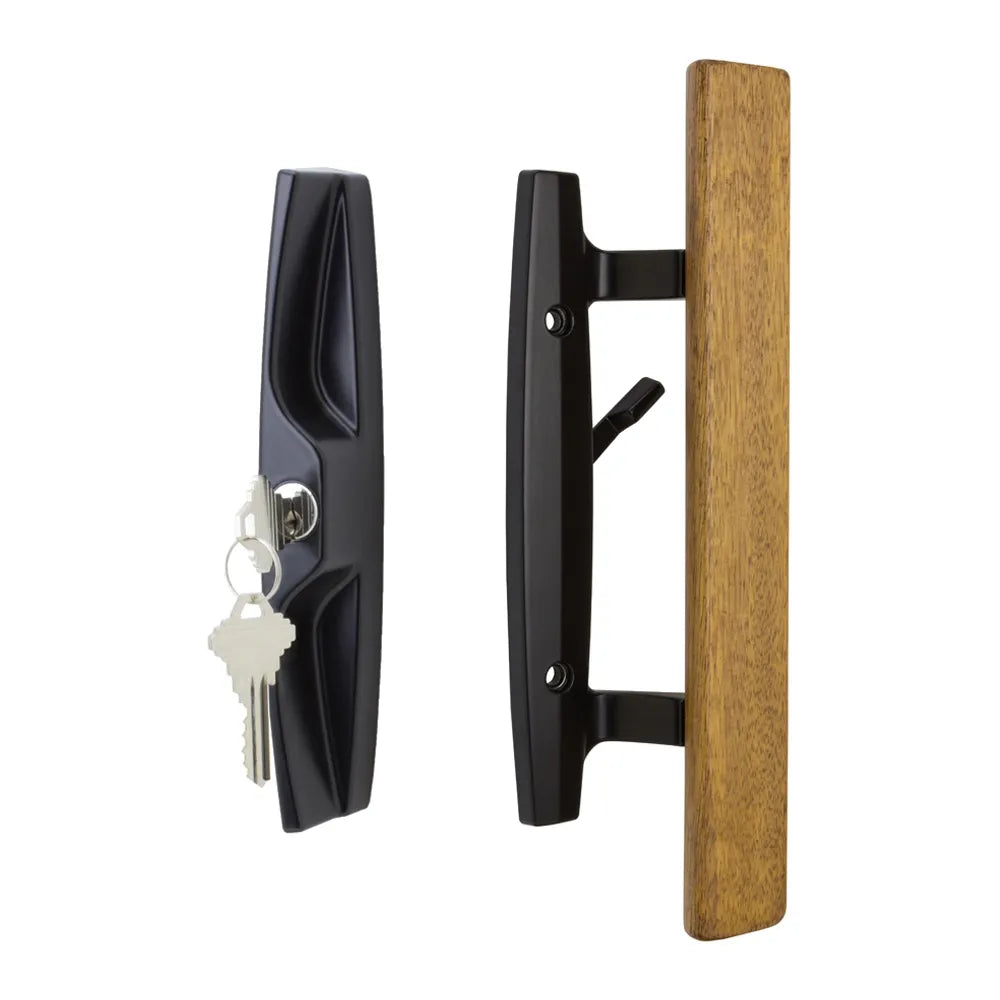

FPL Lanai Keyed Sliding Door Handle

About this product:

FPL's keyed Lanai sliding door handle is made from zinc and features a natural oak interior handle. Pair the oak accent with a choice between two quality finishes. Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Zinc construction for attractive design and pricing
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 3-15/16" center-to-center (c-t-c) screw hole spacing
  • The keyed configuration can have a latch in the offset position, 2-5/8" center-to-center (c-t-c) or the centered position, 2" center-to-center (c-t-c)
  • Available finishes: Black (BPC), White (WPC)
  • FPL offers a Lifetime Limited Mechanism Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL Lanai Keyed Sliding Door Handle

About this product:

FPL Lanai Dimensions

The Lanai keyed slider features a key cylinder and thumb latch. Your mechanism is retracted by a key on the outside or the thumb latch on the inside. The Lanai style is also available in the patio (locks/unlocks with thumb latch on interior only) function. This item is listed separately.

 Product Specs:
  • Lanai Specification Sheet
  • Optional mechanism: #3-45-S-14AD Specification Sheet
  • Optional mechanism: #3-45-S-14AD Strike Specification Sheet
  • Screw hole spacing: 3-15/16" center-to-center (c-t-c)
  • The keyed configuration can have a latch in the offset position, 2-5/8" center-to-center (c-t-c) or the centered position, 2" center-to-center (c-t-c)
  • Door thickness: 1-1/2" to 2-1/4"
  • Plate width: 1"
  • Plate length: 7-1/4"
  • Projection from door face: 1-7/8"
  • Keyway: Schlage C
  • Keys: Each set includes 2 keys



MORTISE LOCK MECHANISM OPTIONS

FPL Lanai Keyed Sliding Door Handle

The Lanai keyed slider pairs perfectly with three FPL mortise mechanisms. If you desire to design your own configuration for the Lanai slider aside from the default option above, please visit the links below to configure an adapter style, strike style, and finish.

INSTALLATION

FPL Lanai Keyed Sliding Door Handle

About this product:

The Lanai keyed sliding door handle is designed for easy installation using standard 3-15/16" screw hole spacing. It is compatible with many common sliding door mortise lock configurations.

 Product Installation:
  • The keyed configuration can have a latch in the offset position, 2-5/8" center-to-center (c-t-c) or the centered position, 2" center-to-center (c-t-c)


ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" menu tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.

 Order Help:
