FPL Sliding Door Exterior Straight Pull Handle

FPL Door Locks & Hardware

  • $9.87


PRODUCT DESCRIPTION

FPL Sliding Door Exterior Straight Pull Handle

About this product:

FPL's Sliding Door Exterior Straight Pull Handle is made from zinc and available in a quality black powder coat finish. When needing to replace an exterior sliding door handle, this is a simple and cost effective choice. If you are needing a full handle set, click hereMost FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Part number LAN-EXT-V1-B
  • Zinc construction for attractive design and pricing
  • Powder coat finish for durability
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 3-15/16" center-to-center (c-t-c) screw hole spacing
  • Optional key cylinder
  • Replacement handle compatible with many interior sliding door handles



PRODUCT SPECS

FPL Sliding Door Exterior Straight Pull Handle

About this product:

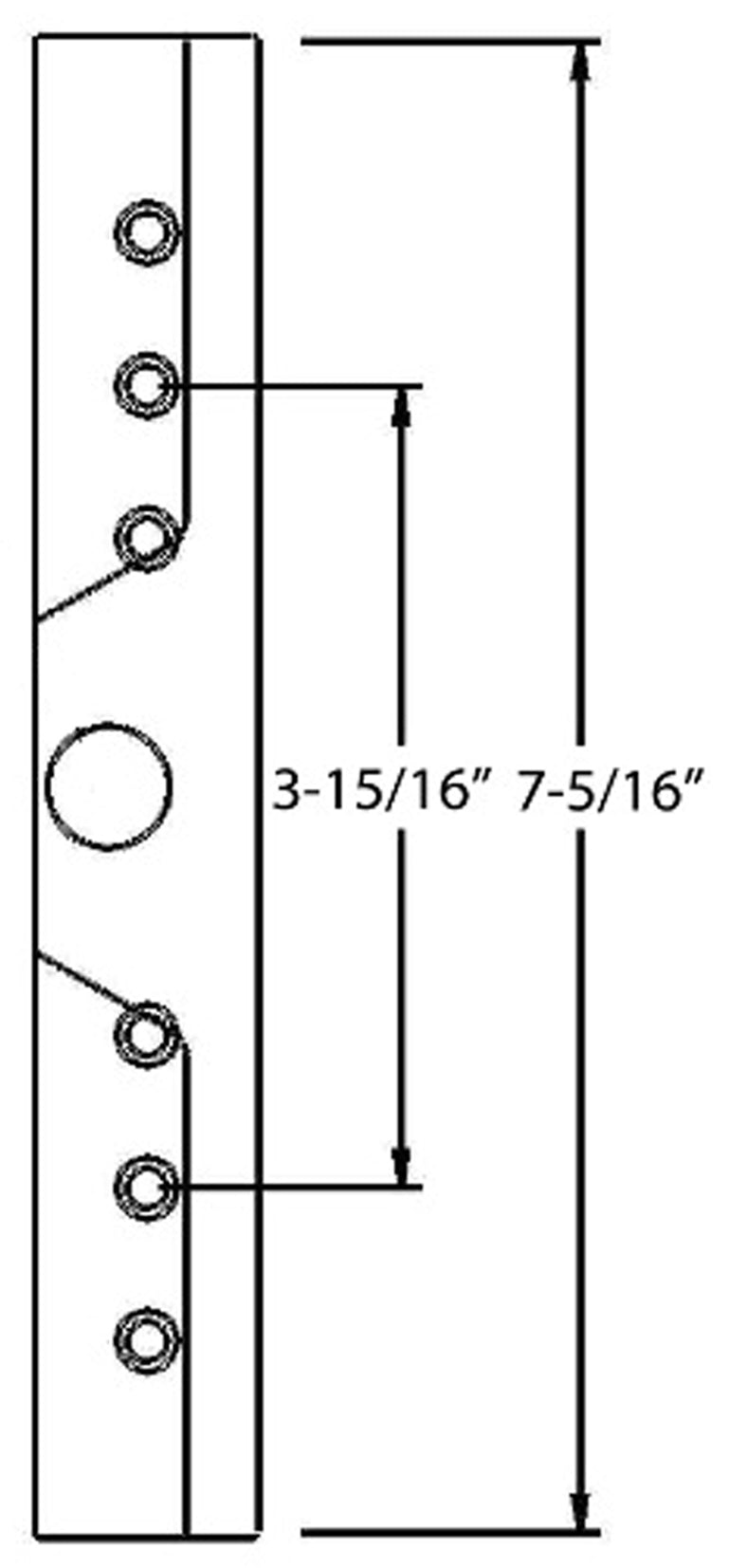

FPL LAN-EXT-V1 Door Handle Dimensions

 Product Specs:
  • LAN-EXT-V1-B Specification Sheet
  • Screw hole spacing: 3-15/16" center-to-center (c-t-c)
  • The non-keyed configuration can have a latch in the offset position, 2-5/8" center-to-center (c-t-c) or the centered position, 2" center-to-center (c-t-c)
  • The keyed configuration can have a latch in the offset position, 2-5/8" center-to-center (c-t-c) or the centered position, 2" center-to-center (c-t-c)
  • Compatible with right or left handed doors
  • Includes 2-1/4" and 2" 8-32 finished matched machine screws
  • Standard mounting hardware will fit door thickness of 1-3/8" to 1-3/4" (contact us if different screw lengths needed)
  • Plate width: 1"
  • Plate length: 7-5/16"
  • Projection from door face: 1"
  • Optional key cylinder keyway: Schlage C
  • Keys: Each key cylinder includes 2 keys
  • Key cylinder tail piece length at 57mm and will need to be cut to length (contact us if longer tail piece is needed)



INSTALLATION

FPL Sliding Door Exterior Straight Pull Handle

About this product:

This sliding door exterior straight pull handle is designed for easy installation using standard 3-15/16" screw hole spacing. It is compatible with many common sliding door mortise lock configurations.

 Product Installation:
  • Includes 2-1/4" and 2" 8-32  finish matched machine screws
  • Standard mounting hardware will fit door thickness of 1-3/8" to 1-3/4" (contact us if different screw lengths needed)
  • The non-keyed configuration can have a latch in the offset position, 2-5/8" center-to-center (c-t-c) or the centered position, 2" center-to-center (c-t-c)
  • The keyed configuration can have a latch in the offset position, 2-5/8" center-to-center (c-t-c) or the centered position, 2" center-to-center (c-t-c)
  • Note: the keyed configuration may require slight modification to the exterior side of the door since the key cylinder must extend into the door.
  • Key cylinder tail piece length at 57mm and will need to be cut to length (contact us if longer tail piece is needed)


ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" menu tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.
