FPL Malibu Sliding Door Handle - Keyed

FPL Door Locks & Hardware

  • $374.45


PRODUCT DESCRIPTION

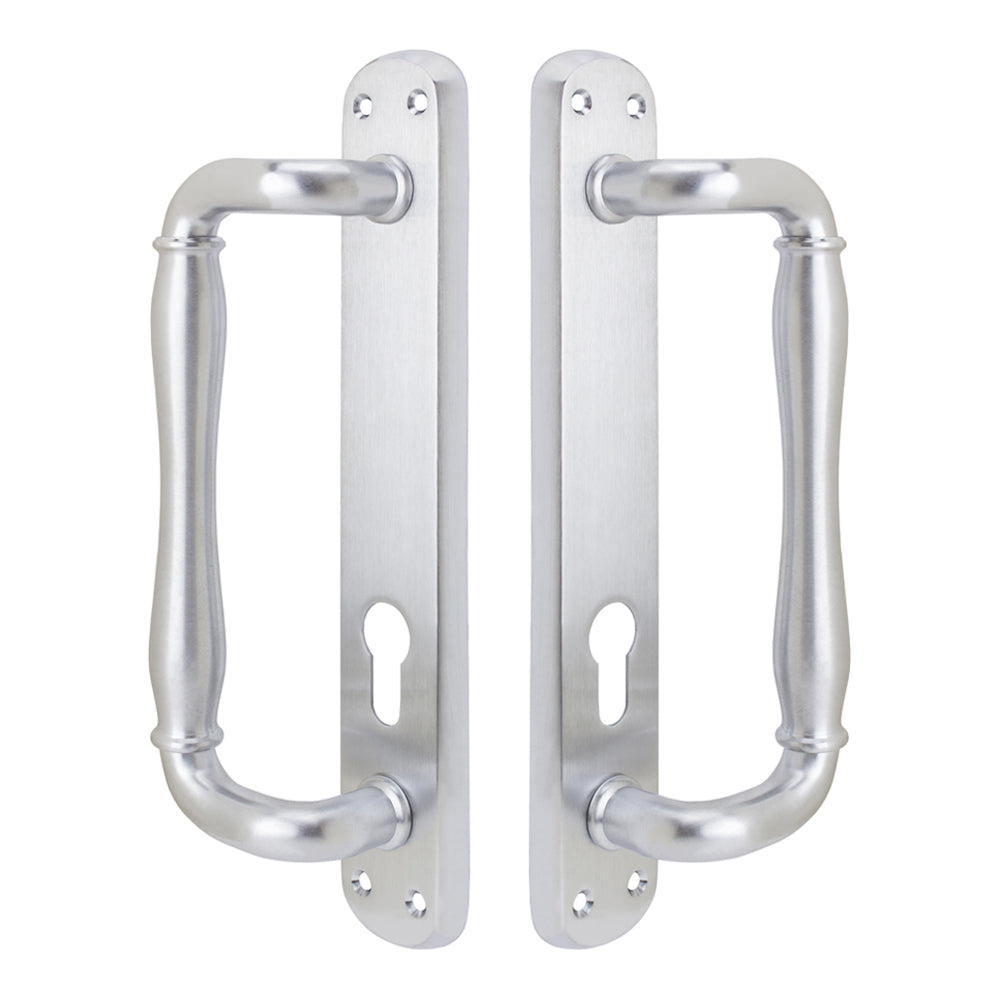

FPL Malibu Keyed Sliding Door Handle

About this product:

FPL's keyed Malibu sliding door handle is made from solid brass and available in an array of popular finishes. FPL also offers customization, including split finish options, allowing you to create hardware uniquely suited to your home. Please feel free to contact us, we would be happy to assist with customization beyond what is offered here. Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • FPL Malibu product page
  • Solid brass construction for durability and quality
  • Complete set includes all necessary mounting hardware and accessories
  • Available finishes: Polished Brass (US3), Antique Brass (US5), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Polished Chrome (US26), Satin Chrome (US26D), Lifetime Polished Brass (PVD), Rustic Distressed Brass (DB), Rustic Distressed Dark Bronze (DDB), Rustic Distressed Light Bronze (DLB), Rustic Distressed Nickel (DN)
  • FPL offers a Lifetime Limited Mechanism Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL Malibu Keyed Sliding Door Handle

About this product:

Malibu Dimensions

The Malibu keyed sliding door handle set is used along with a Euro profile key cylinder. The optional finish-matched cylinder allows for locking/unlocking by a key on the outside and thumbturn on the inside. The Malibu style is also available in the patio (locks/unlocks with thumbturn on interior only), dummy (used on the inactive door when two sliding doors meet in the middle) and half dummy (one sided and contains no locking mechanism) functions. These items are listed separately.

 Product Specs:
  • Malibu Specification Sheet
  • Screw hole spacing: 8-1/2" center-to-center (c-t-c)
  • Plates surface mount with finish-matched wood screws
  • Door thickness: 1-3/4" to 2-1/4"
  • Plate width: 1-5/8"
  • Plate length: 9-13/16"
  • Projection from door face: 2-1/8"

Optional Cylinders:

  • Standard Single Keyed Profile Cylinder - #025S-76
  • Door thickness: 1-3/4" to 2"
  • Keyway: Schlage C
  • Keys: Each cylinder includes 2 keys
  • Standard Single Keyed Profile Cylinder - #025S-84
  • Door thickness: 2-1/4"
  • Keyway: Schlage C
  • Keys: Each cylinder includes 2 keys

Please note that FPL offers custom cylinders and will assemble according to any offset size; down to the exact millimeter. Please contact us to design your custom cylinder! Contact information can be found in the "Support" tab above.



OPTIONAL MORTISE LOCK SPECS

FPL Malibu Keyed Sliding Door Handle

The Malibu keyed slider pairs with the optional 559-50 Pull to Open Sliding Mortise Lock Mechanism.

 #559 Mechanism Dimensions

 Product Specs:
  • 559-50 Specification Sheet
  • Backset: 50mm
  • Mechanism will latch when closed and unlatch automatically when door is pulled upon.
  • Euro profile cylinder is used to lock/unlock the function of the latch.
  • Euro profile cylinder is secured with cylinder screw through edge of mortise lock
  • See Specification Sheet to determine lock body milling requirements.


INSTALLATION

FPL Malibu Keyed Sliding Door Handle

About this product:

The Malibu keyed sliding door handle set is designed for easy surface mount installation using included finish-matched wood screws.

 Product Installation:
  • Surface mount plates with included finish-matched screws
  • See "Optional Mortise Lock Specs" tab for mortise lock mechanism installation



ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. FPL also offers customization, including split finish options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" menu tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.

 Order Help:
