FPL Ambassador Sliding Door Lock - Patio (California Classics Replacement)

$766.70

PRODUCT DESCRIPTION

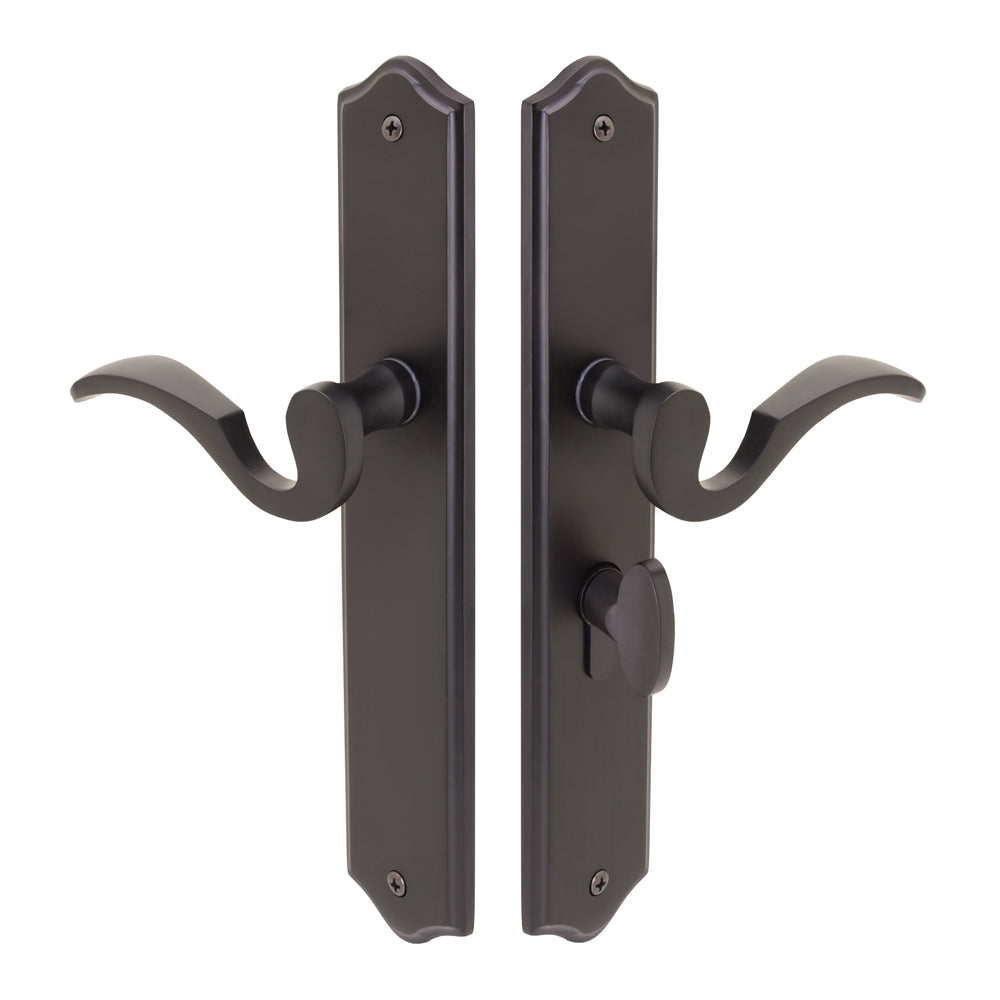

FPL Ambassador Sliding Door Lock - Patio
(California Classics Replacement)

About this product:

FPL's Ambassador patio sliding door lock set is made from solid brass and available in an array of popular finishes. This version is designed as a full replacement for the old California Classics sliding door locks, and replaces the original lock mechanism and trim. The included FPL 560 lock mechanism is the only compatible replacement option that fits the original California Classics door milling. Please see the 'Old Cal Classics Specs' tab to ensure that you have the old style lock set before ordering a replacement. The FPL 560 lock mechanism can also be paired with the Pickfair trim style for a modern trim option.

Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Solid brass construction for durability and quality
  • Complete set includes all necessary mounting hardware and accessories
  • Available finishes: Polished Brass (US3), Antique Brass (US5), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Pewter (US15A), Polished Chrome (US26), Satin Chrome (US26D), Rustic Distressed Brass (DB), Rustic Distressed Dark Bronze (DDB), Rustic Distressed Light Bronze (DLB), Rustic Distressed Nickel (DN)
  • FPL offers a Lifetime Limited Mechanism Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL Ambassador Sliding Door Lock - Patio
(California Classics Replacement)

About this product:

Traditional Sliding Lock Dimensions

FPL's Ambassador patio sliding door lock set includes a European half cylinder with a thumb turn and the 560 mortise mechanism that is specifically designed to replace original California Classics sliding door hardware. The mechanism is retracted by the thumbturn on the inside. The Ambassador style is also available in the keyed (locks/unlocks with a key on the outside and a thumbturn on the inside) and double keyed (locks/unlocks with a key on the outside and on the inside) functions specifically for replacing original California Classics sliding door sets. It is also available in the dummy (used on the inactive door when two sliding doors meet in the middle) function. These items are listed separately.

 Product Specs:

Old California Classics checklist:

Use this checklist to ensure you have the old style lock before ordering a replacement. (Also see "Old Cal Classics Specs" tab)

    • 1" threaded round mortise cylinder
    • Lever below cylinder
    • 3-1/2" cylinder to lever center-to-center (c-t-c)
    • 8-1/4" mechanism front plate with receiver



    OLD CAL CLASSICS SPECS

    Old Cal Classics Specs



    INSTALLATION

    FPL Ambassador Sliding Door Lock - Patio
    (California Classics Replacement)

    About this product:

    The Ambassador (California Classics Replacement) sliding door lock set is designed for easy installation. No modification to the original door milling is needed. Surface mount plates install with included finish-matched screws.

     Product Installation:
    • Installation Diagram
    • Surface mount plates with included finish-matched screws
    • No modification to original door milling



    ORDER HELP

    Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. FPL also offers customization, including split finish options, allowing you to create hardware uniquely suited to your home. We would be happy to assist with customization beyond what is offered here. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" menu tab above for more information.

     Order Help:


    INSPIRATION

    In need of some inspiration? Take a look at these links:

     Inspiration:
