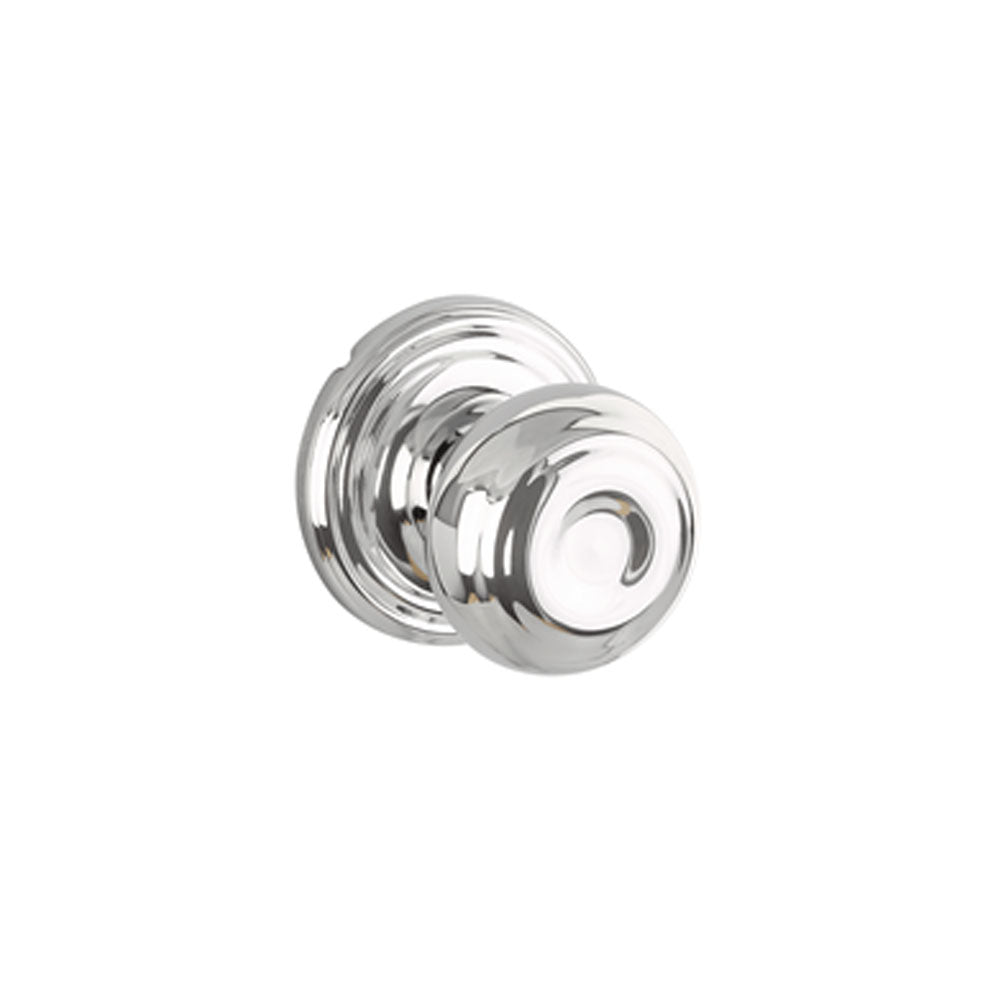

Yale Lewiston Knob Set - Privacy

Name: Yale Lewiston Knob Set - Privacy
Brand: Yale
Price: 25.59 USD
Availability: InStock

$25.59

Quantity

PRODUCT DESCRIPTION

Yale Lewiston Knob Set - Privacy

About this product:

From the Yale Expressions series, the Everly series is characterized by its arched rosettes and classically elegant combinations. The Lewiston knob would be as at home in a southern-style farmhouse as it would be in a refined New England retreat. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Yale Expression items are typically ready to ship in 2-3 business days. Orders requiring keying will extend the lead-time 1-2 days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

Yale Expressions is a collection of door hardware that offers homeowners an elevated look at an affordable price. For more information please visit the manufacturer's page.

Product Features:

Yale Lewiston product page
Designed to meet Grade 3 standards for value and security
Complete set includes all necessary mounting hardware and accessories
Easy installation designed for standard 2-1/8" cross bore door prep and 1" edge bore for latch
Exposed mounting screws on interior rosette
Available finishes: Polished Brass (US3), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Polished Chrome (US26)
Yale offers a Limited Lifetime Mechanical and Five-Year Finish Warranty to the original user
California Residents Proposition 65 Warning

PRODUCT SPECS

Yale Lewiston Knob Set - Passage

About this product:

Privacy Lever/Knob Graphic

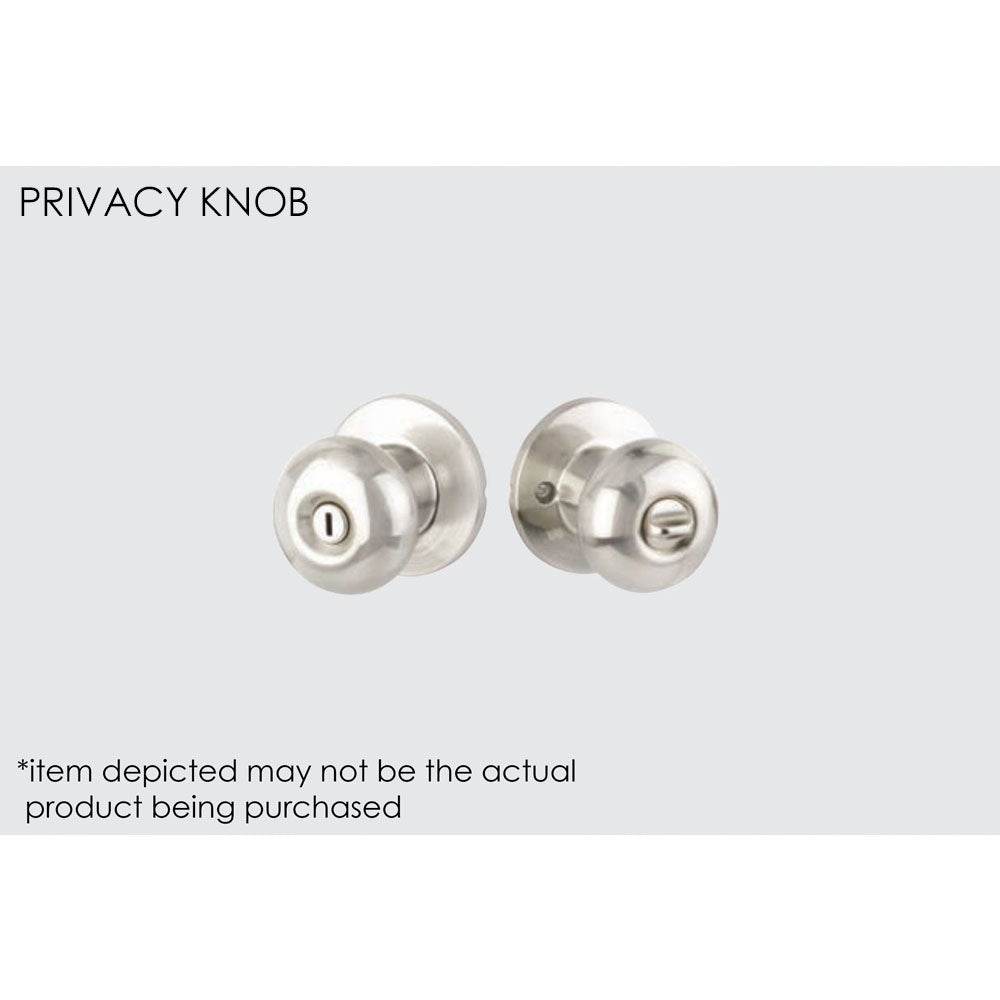

The Lewiston privacy set features a turnpiece on the interior that locks/unlocks the door. It can also be unlocked from the exterior with the emergency egress. The Lewiston knob is also available in the entry (locks/unlocks with a key on the outside and a turnpiece on the inside.), passage (contains a passage latch but no locking function) and dummy (contains no latch or locking function) functions. These items are listed separately.

Product Specs:

Lewiston with Everly Rosette Specification Sheet
Lewiston with Maguire Rosette Specification Sheet
Cross bore: 2-1/8"
Edge bore: 1"
Door thickness: 1-3/8" to 1-3/4"
Universal handing: fits both right and left-handed doors
Projection: 2-1/2"
Adjustable backset: 2-3/8" (60mm) or 2-3/4" (70mm)
Latch: Mortised tubular latch is standard (drive-in latch available on request)
Radius latch faceplate and strike
Lifetime mechanical / 5 year finish warranty

INSTALLATION

Yale Lewiston Knob Set - Privacy

About this product:

The Lewiston privacy knob set is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

Product Installation:

Installation Instructions
Handing Instructions (if needed)
