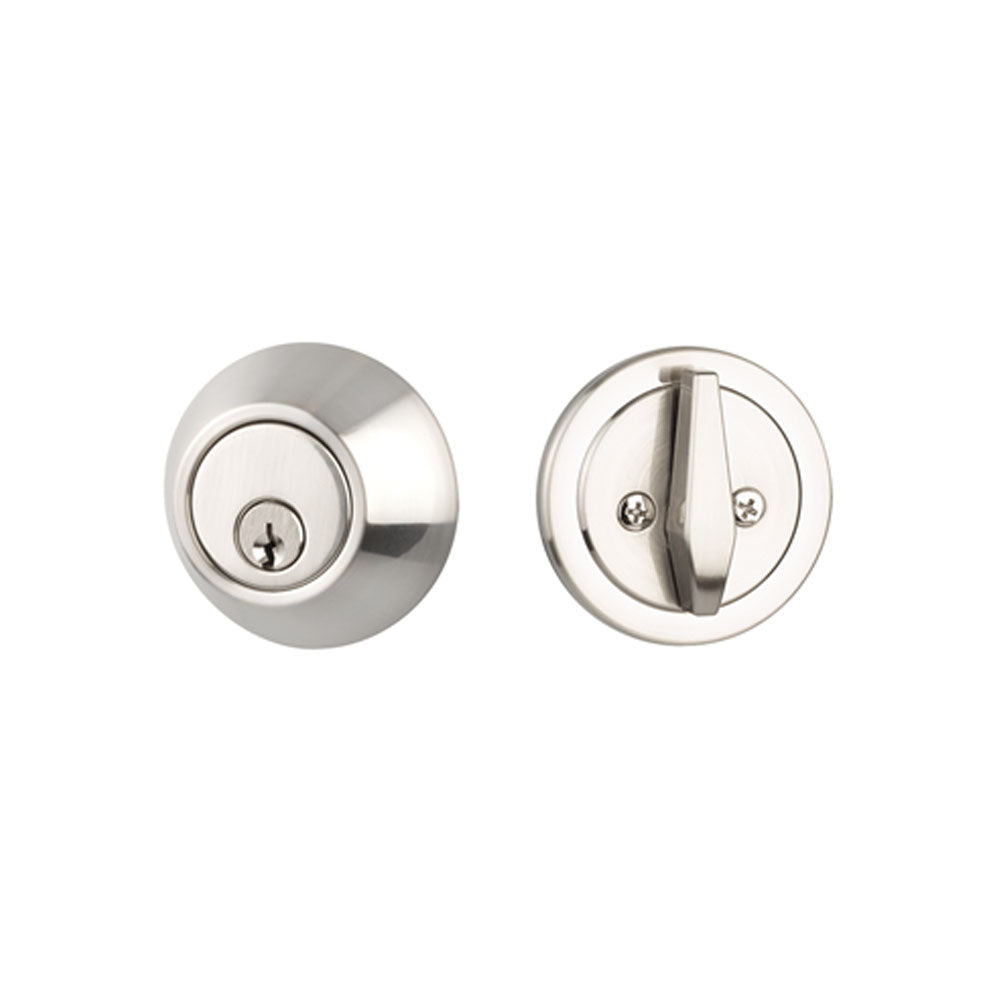

Yale Maguire Deadbolt - Single Cylinder

$23.43

PRODUCT DESCRIPTION

Yale Maguire Deadbolt - Single Cylinder

About this product:

From the Yale Expressions series, the Maguire series delivers a traditional door hardware style as nostalgic as baseball and apple pie. We imagine it on a Ranch style home, or perhaps a classic cottage hideaway, but this deadbolt's good looks are all purpose enough for you to decide. We would be happy to assist with customization beyond what is offered here. Split finish and split style sets are also available. Give us a call to design your custom set.

All Yale Expression items are typically ready to ship in 2-3 business days. Orders requiring keying will extend the lead-time 1-2 days. Please note that the estimated delivery times do not include the product handling times. If you are ordering products that have different handling times, the order will ship complete based on the longest handling time. If you want your products to ship separately, please contact us.

Yale Expressions is a collection of door hardware that offers homeowners an elevated look at an affordable price. For more information please visit the manufacturer's page.

 Product Features:
  • Yale Maguire product page
  • Designed to meet Grade 3 standards for value and security
  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 2-1/8" cross bore and 1" edge bore door prep
  • Available finishes: Polished Brass (US3), Oil Rubbed Bronze (US10B), Satin Nickel (US15), Flat Black (US19), Polished Chrome (US26)
  • Yale offers a Limited Lifetime Mechanical and Five-Year Finish Warranty to the original user
  • California Residents Proposition 65 Warning



PRODUCT SPECS

Yale Maguire Deadbolt - Single Cylinder

About this product:

Emtek Single Cylinder Deadbolt Graphic
The Maguire single cylinder deadbolt is retracted by a key on the outside or the thumbturn on the inside.
 Product Specs:
  • Maguire Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Door thickness: 1-3/8" to 1-3/4"
  • Exterior projection: 15/16"
  • Interior projection: 7/8"
  • Adjustable backset: 2-3/8" (60mm) or 2-3/4" (70mm)
  • Universal handing: fits both right and left-handed doors
  • Latch: Mortised tubular latch is standard (drive-in latch available on request)
  • Radius latch faceplate and strike
  • Keyway: Schlage (SC1), Kwikset (KW1), or Weiser (WR5) available
  • Lifetime mechanical / 5 year finish warranty



INSTALLATION

Yale Maguire Deadbolt - Single Cylinder

About this product:

The Maguire single cylinder deadbolt is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

 Product Installation:


ORDER HELP

Ordering the correct hardware is occasionally a confusing process. We are ready to assist with any questions you may have. Please feel free to contact us for assistance. Customer Service is available by phone Monday - Friday, 9am - 5pm EST. See the "Support" tab above for more information.

Keying information: If you want to order a set that will work with your existing key, it is important to order the same type of key cylinder, because the keys are not interchangeable. For example, a Schlage C key cannot fit into a Weiser WR5 key cylinder. In addition to matching the key cylinder type, you must also match the key code. If you need assistance in determining your key cylinder type or your key code please take your key to a locksmith or key copy center.

We also offer the option of ordering sets that are “keyed alike” or “keyed different”. “Keyed alike” means that all sets ordered together will operate with the same key. “Keyed different” means that each set ordered together will operate with its own unique key. If you are ordering multiple keyed products, such as two of the same product with different options or two different products, please include a note with any keying instructions on the Shopping Cart page.
