Not all finish and hardware combinations are shown. Images may represent style only.

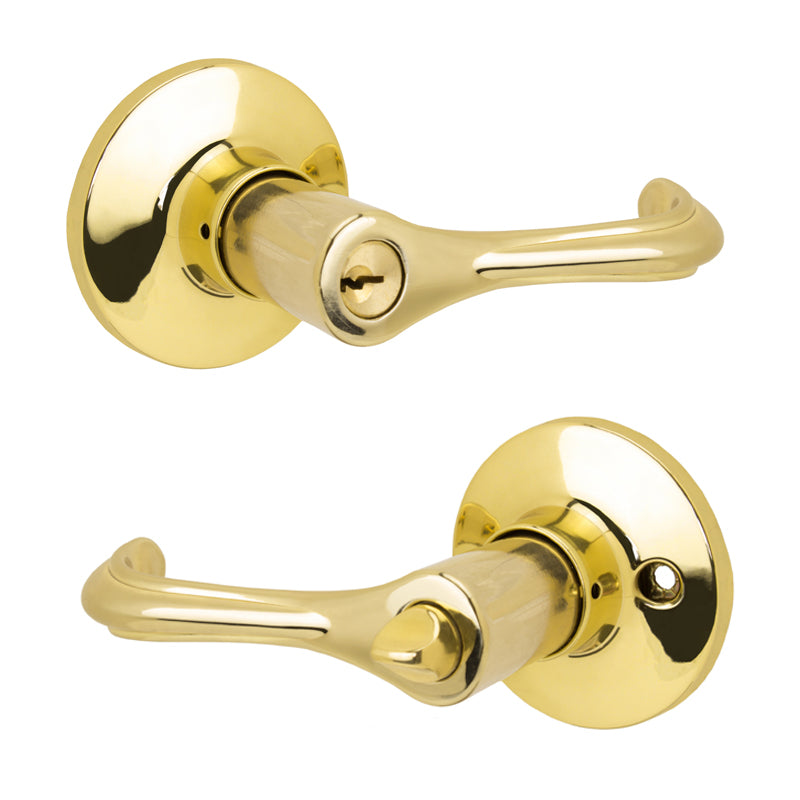

FPL Eiffel Lever Set - Entry

$46.65

$24.00

PRODUCT DESCRIPTION

FPL Eiffel Lever Set - Entry

About this product:

FPL's Eiffel entry lever set is made from zinc and available in two popular finishes. This lever set provides a decorative, classic look and smooth performance. Pairs well with the FPL Haven Deadbolt.

Most FPL items are in stock and will be ready to ship in 1-3 business days.

 Product Features:
  • Zinc construction for attractive design and pricing

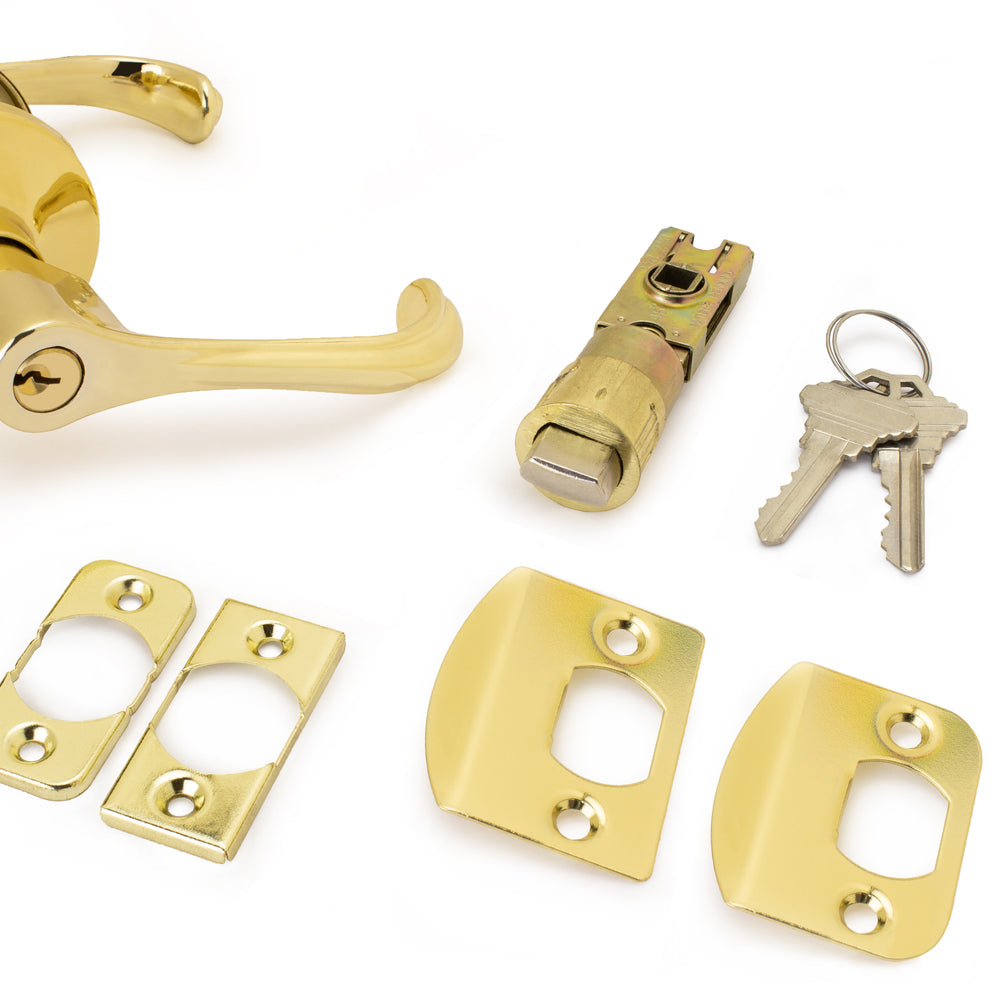

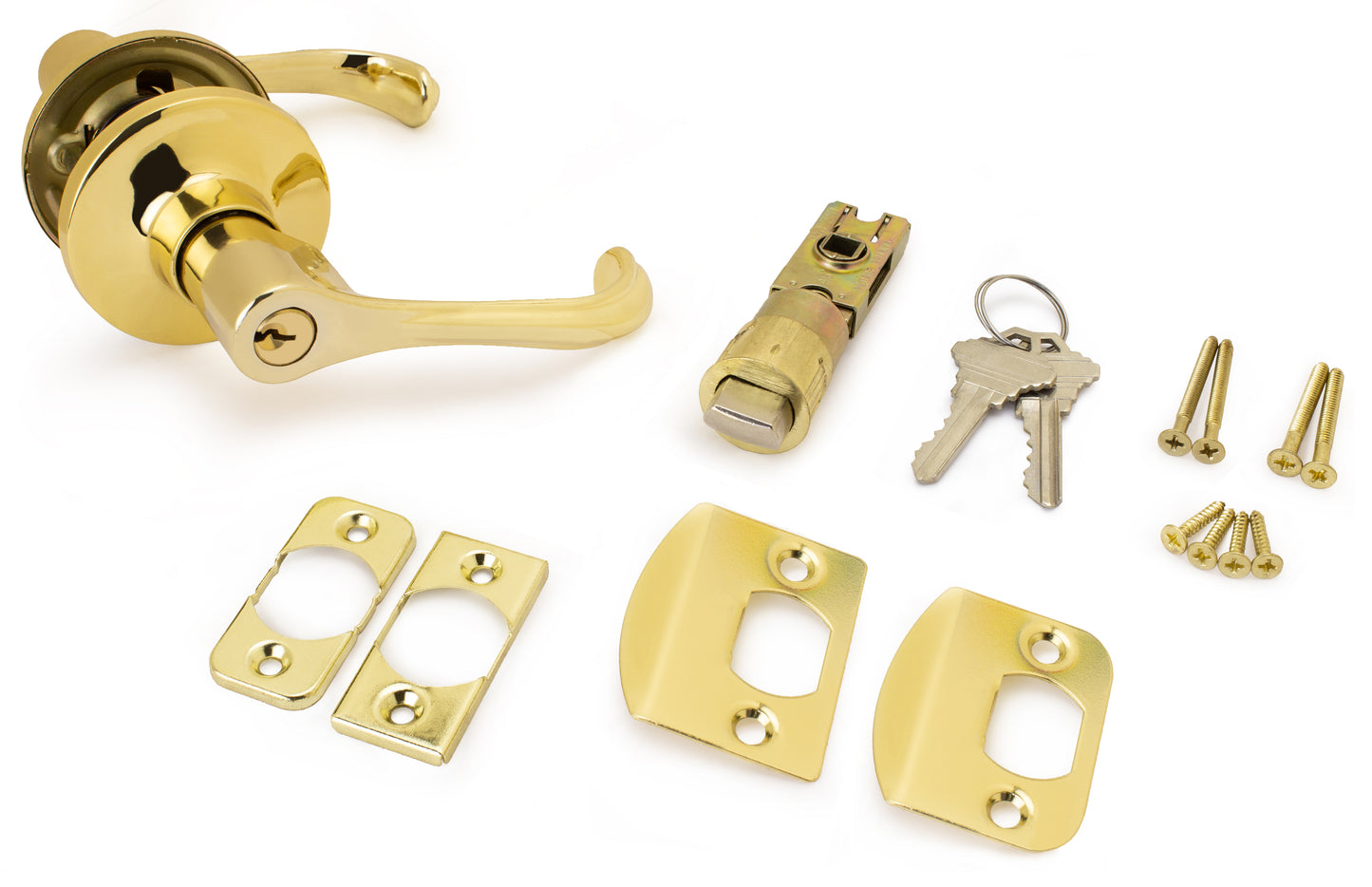

  • Complete set includes all necessary mounting hardware and accessories
  • Easy installation designed for standard 2-1/8" cross bore door prep and 1" edge bore for latch
  • Features springs on each rosette for optimal operational strength
  • Exposed mounting screws on interior rosette
  • Available finishes: Polished Brass (US3), Satin Nickel (US15)
  • California Residents Proposition 65 Warning



PRODUCT SPECS

FPL Eiffel Lever Set - Entry

About this product:

Entry Lever Set Graphic

The Eiffel entry lever set locks/unlocks with a key on the outside and a turnpiece on the inside. The Eiffel lever is also available in the privacy (locks/unlocks with a turnpiece on the interior and can be unlocked from the exterior with the emergency release), passage (contains a passage latch but no locking function) and half dummy (one sided with no latch or locking function) functions. These items are listed separately.

 Product Specs:
  • Eiffel Specification Sheet
  • Entry Lever Set Specification Sheet
  • Cross bore: 2-1/8"
  • Edge bore: 1"
  • Door thickness: 1-3/8" to 1-3/4" (Screws included)
  • Adjustable backset: 2-3/8" (60mm) or 2-3/4" (70mm)
  • Latch: Mortised tubular latch
  • Latch faceplate and strike: Square and radius corner
  • Keyway: 5-pin Schlage C
  • Keys: Each set includes 2 keys



INSTALLATION

FPL Eiffel Lever Set - Entry

About this product:

The Eiffel lever set is designed for easy installation using standard 2-1/8" cross bore and 1" edge bore door prep.

 Product Installation:
